The Li'l Ground-Hog Skid-Mounted Series.
Excavac Corporation was the first to introduce the Li'l Ground-Hog concept -a compact design for mounting on trailers or pick-up truck beds that incorporates a large dump hopper. It is ideal for less demanding  needs such as curb box/valve box cleaning, light-duty "spoils" clean-up, and occasional 'pot-holing' applications.

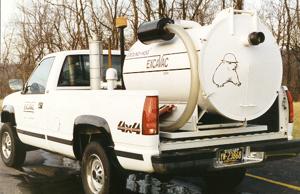

The Li'l Ground-Hog
This configuration combines heavy duty construction in a compact package designed to fit a standard pick-up bed or trailer. To satisfy the need for vacuum excavation equipment that is appropriately sized for the job, Excavac adapted its vacuum excavation technology resulting in a high volume, skid mounted industrial vacuum system.
The standard configuration includes a 1 cubic yd. capacity horizontal dump hopper with hinged end, electro-hydraulic tank dump, and a 4" inlet port. It is available in 20hp to 40 hp systems, and offers an optional electronic high liquid level shutdown.
The versatility of this unit makes it an economical means of curb box and valve cleaning, as well as an ideal unit for occasional 'pot-holeing' applications when used in conjunction with standard soil loosening air tools and compressor.

HT-130D
Unit features a positive displacement vacuum pump capable of pulling 15" Hg vacuum; 37 cu. ft. hopper with electro-hydraulic dump mechanism; 4" vacuum inlet; 15" Hg vacuum relief; removable metal primary filter; external 4 micron cartridge type final filter; 5" site port level indicator; 30 Hp air-cooled diesel engine; 7.5' x 4' skid footprint; 12 volt electrical start/run system; 5 gal. portable fuel tank with quick disconnect; industrial spec. urethane paint finish; 30" x 3" lightweight flexible vacuum hose, two 6' steel vacuum nozzles.

HT-230D
Unit features a 500 CFM positive displacement vacuum pump capable of pulling 15" Hg vacuum; 2 cu. yd. hopper (standard full-end opening) with electro-hydraulic dump mechanism; 4" vacuum inlet; 15" Hg vacuum relief; in-tank washable; removable metal primary filter; external 4 micron cartridge type final filter; 5" site port level indicator; 30 Hp air-cooled diesel engine; 7.5' x 4' skid footprint; 12 volt electrical start/run system; 5 gal. portable fuel tank with quick disconnect; industrial spec. urethane paint finish; 30" x 3" lightweight flexible vacuum hose, two 6' steel nozzles.
